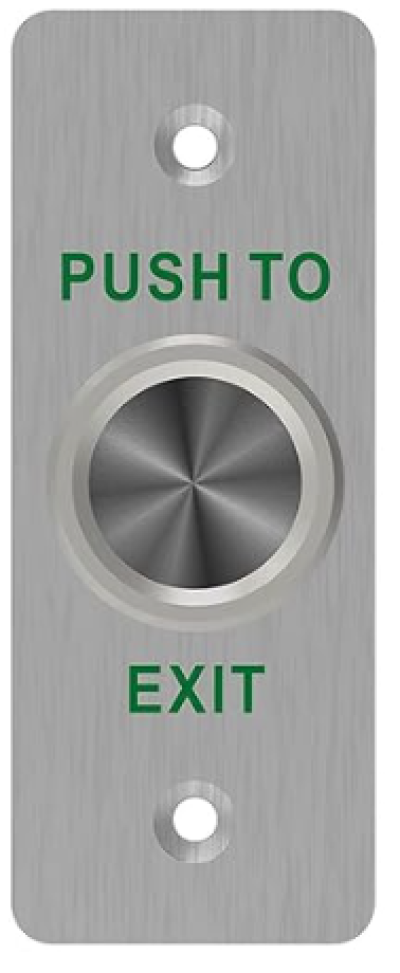

PUSH TO EXIT BUTTON SENTY PE-B201
SKU : PE-B201
Short Description
Narrow Profile Stainless Steel Exit Switch
A premium push-button switch designed for access control systems. Manufactured from high-quality
stainless steel with a sleek wire-drawing finish, it ensures exceptional durability. Tested for over 500,000
mechanical operations, it is perfectly suited for hollow door installations and comprehensive security setups.
Dimensions (LxWxH): 90 x 35 x 26.5 mm
Operating Temperature: -10°C ~ 55°C
Standard Structure: Stainless steel panel, steel button
Operating Humidity: 0-95% (Relative humidity)
Current Rating: 3A @ 36VDC Max.
Panel Material: Stainless steel panel, wire drawing finished
Mechanical Life: 500,000 tests

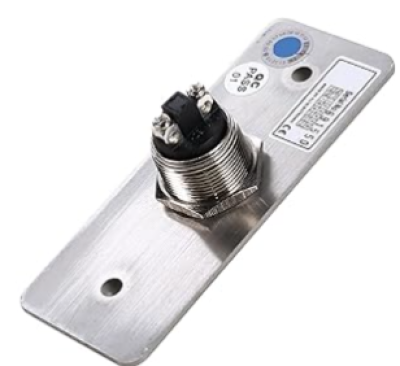

Terminal Type: Screw terminal, easy to install
Suitable for Door: Hollow Door
Working Type: Momentary (Press & Hold - ON, Release - OFF)
Datasheet
