SKU : ZDD-116PIR
Short Description

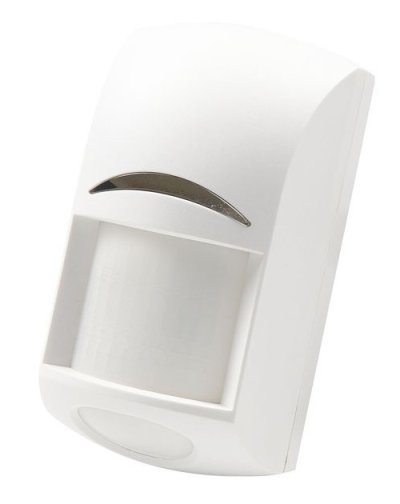

ZDD-116PIR is a kind ofPIR detector used to detect the suddenness and hostile intrusion and can meet the normal defending needs. And it has small and white streamline design. Can be installed on the wall or at the front direction with the 45 degrees. The ideal installing height is 2.3m higher than the floor. The detecting area can avoid the protecting dead zone, the optical sensitivity setting can suit for different
installing environment. The product is built-in tamper switch to prevent the non-auth critical taking-away.
Detecting distance: 9m / 2 5 ℃
Input voltage: 12VDC
Current consumption: < 15mA
The part of Ir( see the right picture)
alarm and tamper
Alarm output: solid relay, NC
Less than 100mA/30V, -10。 interior impedance
Tamper terminal: NC,50mA/30VDC
Less than 100mA/30Y --10。 interior impedance
Alarming indicator: the blue light on is alarm
Detection method: Passive infrared and Temp
Datasheet
