SKU : ZDBT-802
Short Description

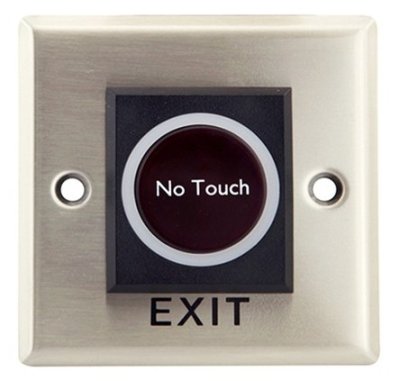

Infrared Sensor No Touch Door Release Button: The ZudSec Wave-To-Open Sensors use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
Infrared Sensor, No Touch exit Button, Stainless steel Panel with Elegant Style. Tested to 500000 Cycles. NO\NC\COM output contact, User can choose N.O, N.C, COM terminals to get access to system application accordint to using station, Suitable for all kinds of Locks.The Best Choice for Access Control.
Input Volt.: DC 12V; Contact Rating: 12-28V,3A
Output Contact: NO/NC/COM
No touch / Touch free Exit Sensor (Diffused Detection)
Material: 304 Stainless steel Plate
Detection range: 0.1 ~ 10 cm
Operating temp: 10~+55℃(14-131F)
Operating Humidity: 0-95% (non- condensing)
Led Indicator
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation)
Product size: 86Lx86Wx39H(mm), Weight: 0.18kg
